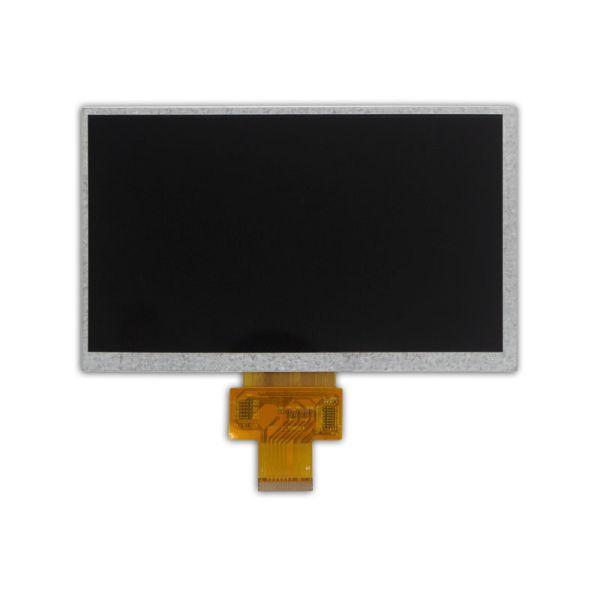

-40 to 95 Degree 7 inch Custom LCD Display Module 40pin LVDS Interface 500cd/m2

Brand Name : AISON

Model Number : Z070WV30

Certification : ISO9001 / ISO14000/ROHS

Place of Origin : Guangdong,China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 200k/month

Delivery Time : 7 working days

Packaging Details : Blister Package/Carton

Name : 7 inch Custom LCD Display Module

Resolution : 800X480

Outline dimension : 165.4*104.59*5.8mm

Active area : 152.4 x 91.44mm

Interface : LVDS

Viewing angle : 85/85/85/85

Brightness : 500cd/m2

Display mode : Normally Black

Viewing Direction : IPS/ALL

Operating temperatures : -30 to 85 degree

Storage temperatures : -40 to 90 degree

Contact Now

-40 to 95 Degree 7 inch Custom LCD Display Module 40pin LVDS Interface 500cd/m2

General Description
The Z070WV30 is a 7.0 inch diagonal a-Si TFT-LCD display panel product from Aison, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C , and the maximal vibration level of 3.0G (29.4 m/s²). It's general features are summarized in the following: Wide Temperature, WLED Backlight, Life ≥ 50K hours, With LED Driver, U/D,L/R Reverse, 6/8 bit, Matte . Based on its features, recommend that this model be applied to Industrial, Automotive Display etc.

Z070WV30 is featured with IPS technology which is having the advantages of wider viewing angle of Left:85 / Right:85 / Up:85/ Down:85 degree, contrast ratio 1000:1 (typical value), high brightness 500 nits, anti-glare surface panel, aspect ratio 16:9. This module is built-in with EK9713B and EK73002A driver ICs, it supports LVDS interface. The LVDS(Low-Voltage-Differential-Signaling)becomes more popular for TFT LCD display. Z070WV30 module was designed to use LVDS interface which is a popular choice for TFT LCDs and peripherals in need of high bandwidth, like high-definition graphics and fast frame rates. It is a great solution because of its high speed of data transmission while using low voltage and improved noise performance. The supply voltage (VDD) of Z070WV30 is from 2.7V to 3.6V, typical value 3.3V. It can be operated at temperatures from -30°C to +85°C and storage temperatures from -40°C to +95°C.

General Data

Model Name 7 inch Industrial TFT LCD Module
Resolution 800x480
Model Size (W*H*T) 165.4*104.59*5.8mm
Display Area (W*H) 152.4 x 91.44mm
Interface LVDS
Display Mode Normally Black,Transmissive
Viewing IPS
Brightness 500 cd/m2
Pin number 40 pin
Driver IC
EK9713B+EK73002A
Operating temperatures -30 to 85 ℃
Storage temperatures -40 to 95 ℃



Drawing
-40 to 95 Degree 7 inch Custom LCD Display Module 40pin LVDS Interface 500cd/m2-40 to 95 Degree 7 inch Custom LCD Display Module 40pin LVDS Interface 500cd/m2


Product Details

-40 to 95 Degree 7 inch Custom LCD Display Module 40pin LVDS Interface 500cd/m2-40 to 95 Degree 7 inch Custom LCD Display Module 40pin LVDS Interface 500cd/m2


TFT Applications
This 7 inch tft display features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C ,Based on its features, recommend that this model be applied to Industrial, Automotive Display etc.
-40 to 95 Degree 7 inch Custom LCD Display Module 40pin LVDS Interface 500cd/m2


TFT Custom Solutions
-40 to 95 Degree 7 inch Custom LCD Display Module 40pin LVDS Interface 500cd/m2-40 to 95 Degree 7 inch Custom LCD Display Module 40pin LVDS Interface 500cd/m2


Product Tags:

500 cd/m2 Industrial TFT LCD



Industrial TFT LCD 40 Pin



LVDS Display Module 7 Inch


Quality -40 to 95 Degree 7 inch Custom LCD Display Module 40pin LVDS Interface 500cd/m2 for sale
